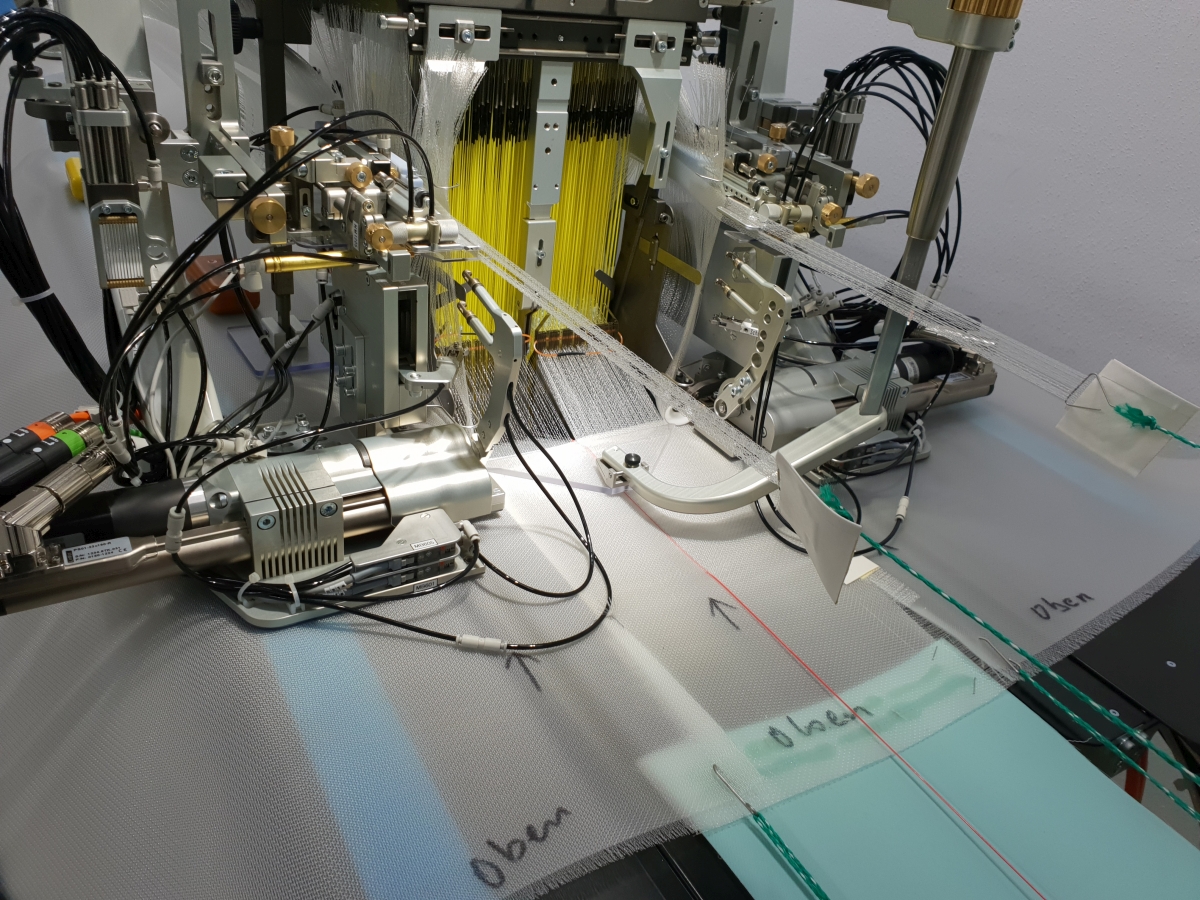

SEAMATIC SC5 HF

Because Heavy Fabrics need an HF

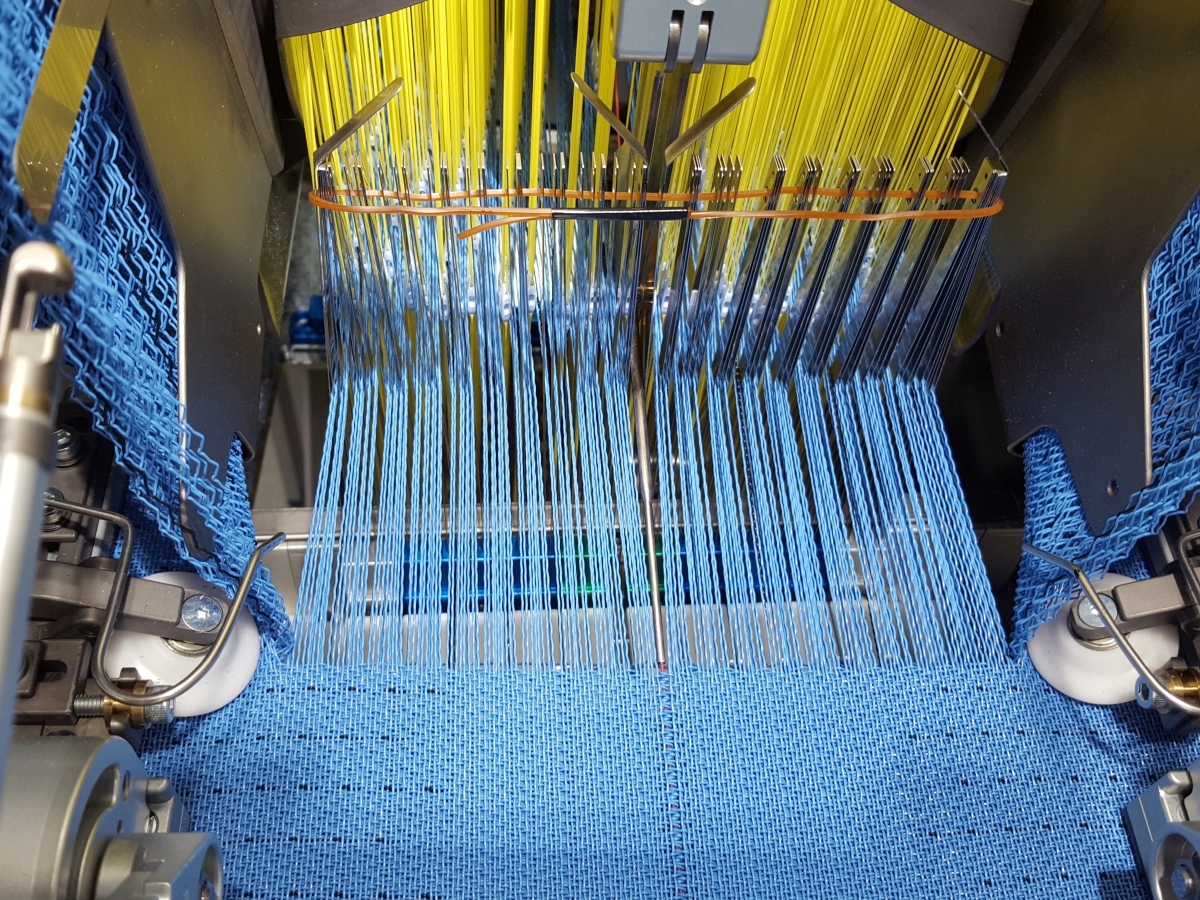

The innovative SC5 HF is designed for making endless or double pin seams on single- or double-layer fabrics, mainly in the engineered fabrics field.

Components from machines for forming and dryer fabrics have been combined and partially redesigned to create a machine to push seaming efficiency of engineered fabrics to a new level.

TECHNICAL DATA

Seam width:	100 – 200 mm (250 optional)
Seam performance:	up to 2.000 thread pairs per hour on endless seams up to 1.800 thread pairs per hour on pin seams, depending upon fabric design and seam width
Weft thread diameter:	0,10 – 0,80 mm
Warp thread diameter:	0,10 – 0,70 mm
Harness capacity:	320 threads standard 448 maximum at additional cost
Ambient temperature:	15° – 35° C
Humidity:	20 % – 80 %
Sea level:	max. 1.000 m

STANDARD FEATURES

WIS splice point design software
Fabric set-up information stored in Excel format
Fully electronic STÄUBLI LX 62 V Pro Jacquard

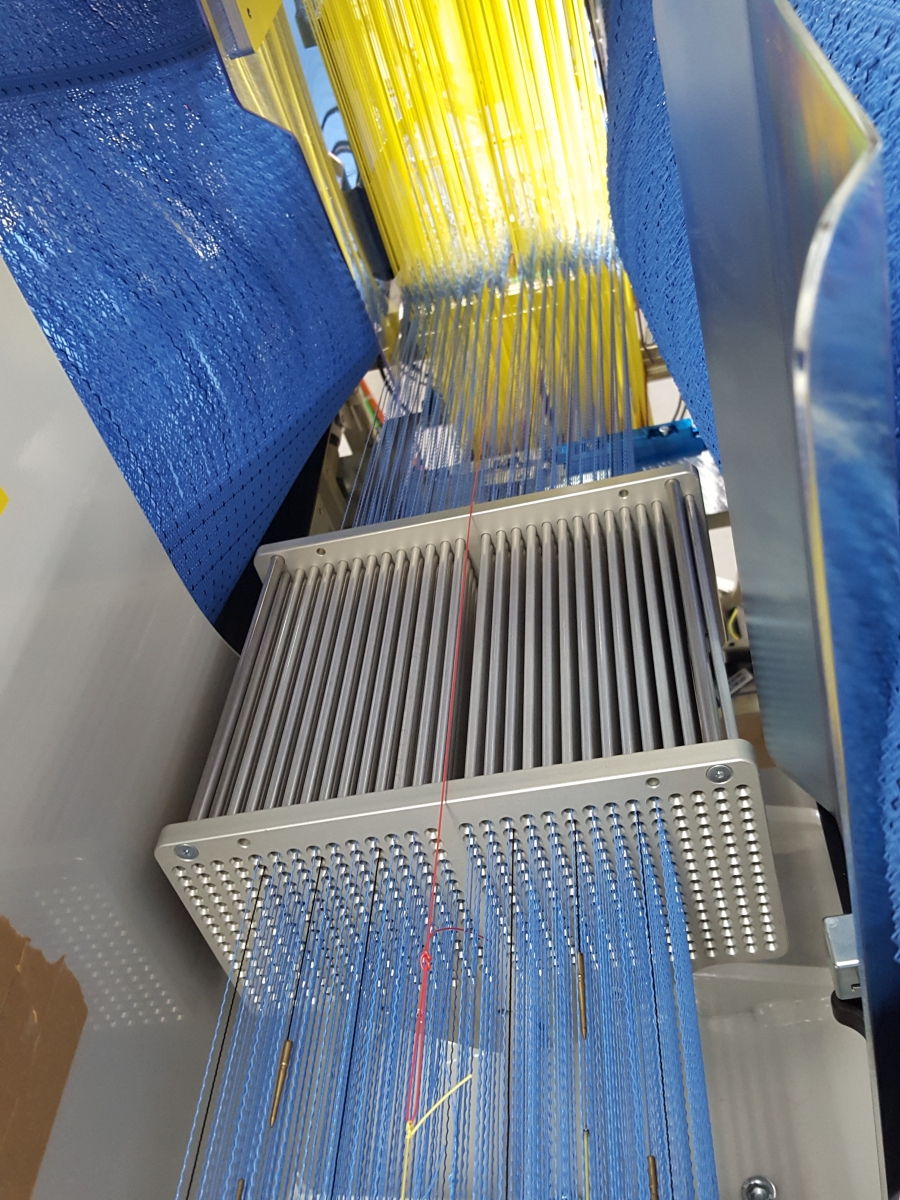

Adjustable harness
Carbon interlace arms for additional strength
Thread monitoring in gripper heads
Corner lift to assist warp insertion
Double transfer arm for defined transfer of the warp yarn
Thread separation and unweaving device to assist transfer gripper
Ability to seam herring-bone design fabrics
High pressure booster for interlace gripper for extra strength

OPTIONAL FEATURES

Various seam strip tension possibilities through different spring boxes
Different servo sleys depending on fabric requirement
Camera system for visual aid
High speed camera for adjustments and fault detection
Remote control magazine band tensioner
Height adjustable operator platform
